Double A-frame: Trio 75 combined with Duo 57
Avrame offers a lot of possibilities to personalise the house. We can change a lot: the interior planning, add dormers, terraces/decks, skylights; make the houses longer; join multiple units together with galleries between them; leave the ceiling open – pretty much endless options to play with. The following offer is something for a real A-frame fan. Trio 75 combined with Duo 57.
Functionality and layout
Our engineers have combined our trio 75 and duo 57 into one house creating a spacious living area and wellness unit with sauna to the other wing. The house includes 2 bedrooms, 1 living room with kitchen and dining area (double height ceiling), restroom, gallery, additional sleeping place on the loft, sauna and shower room.

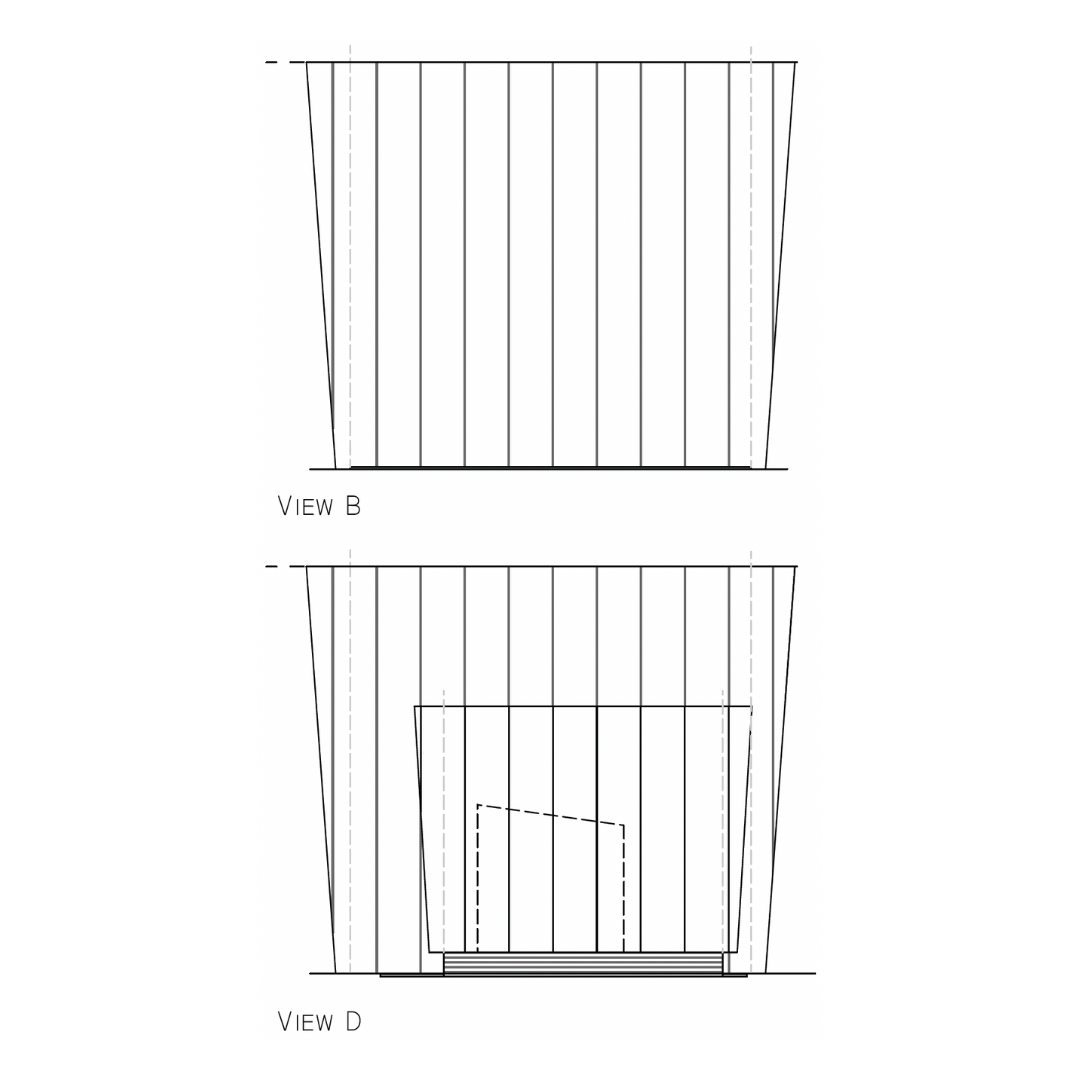

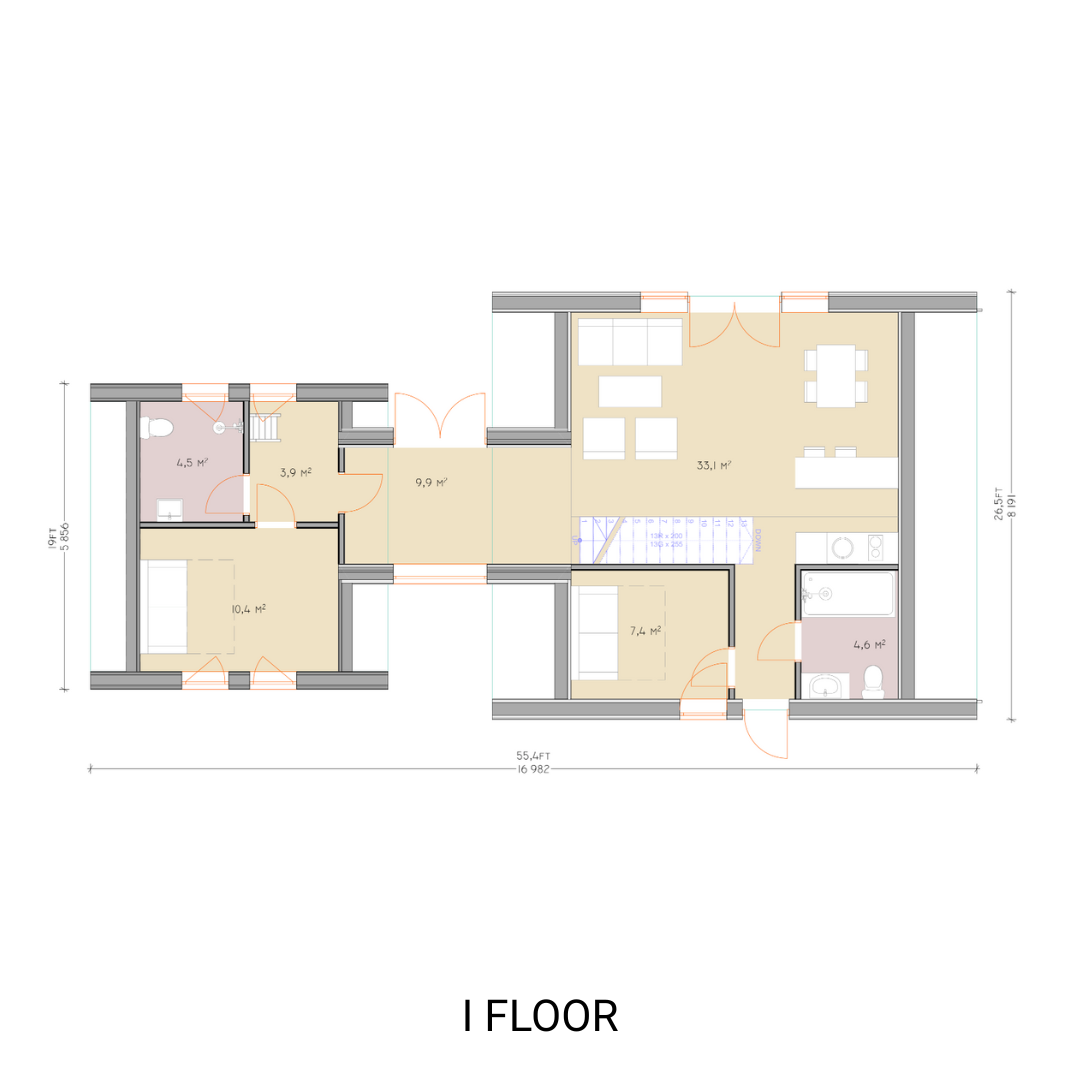

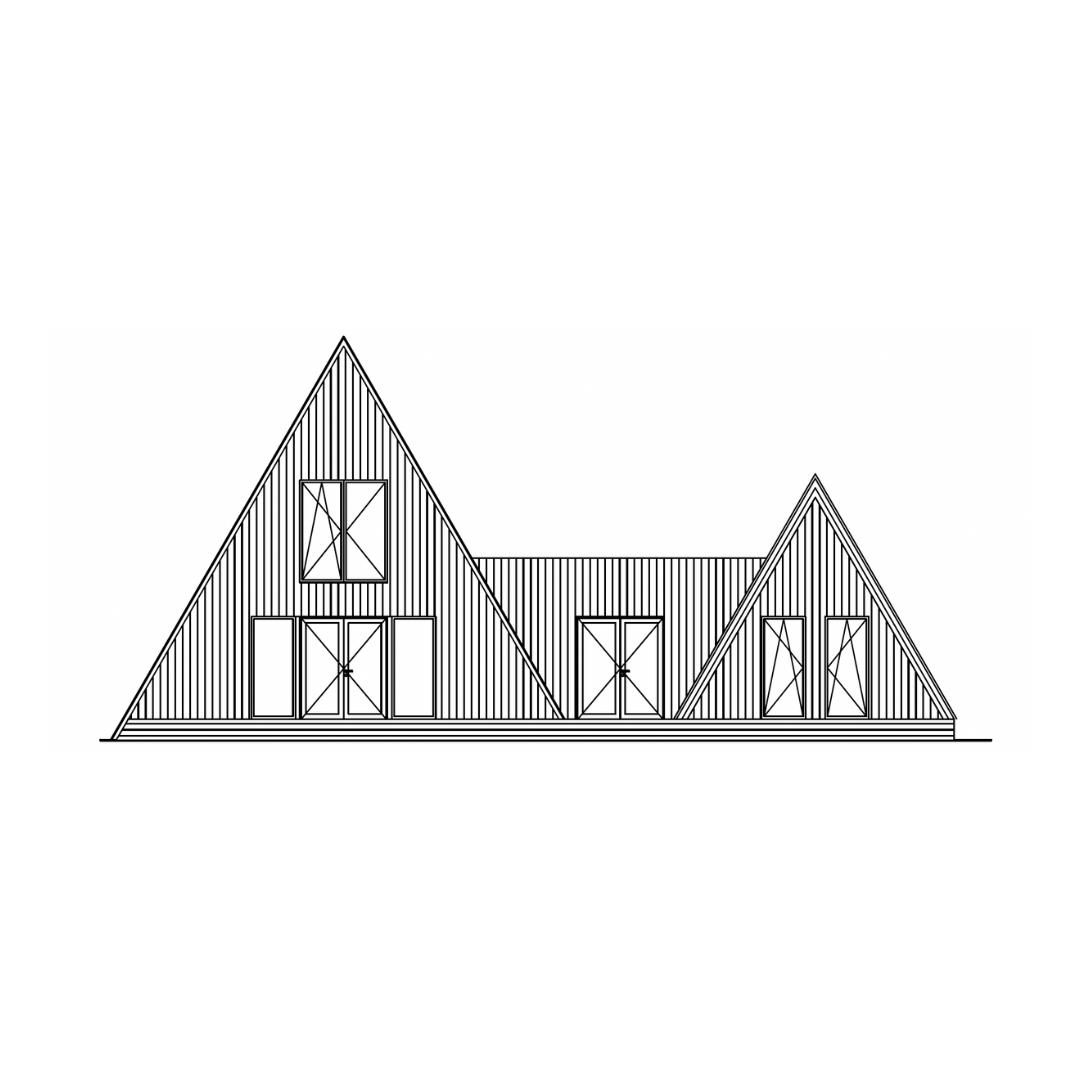

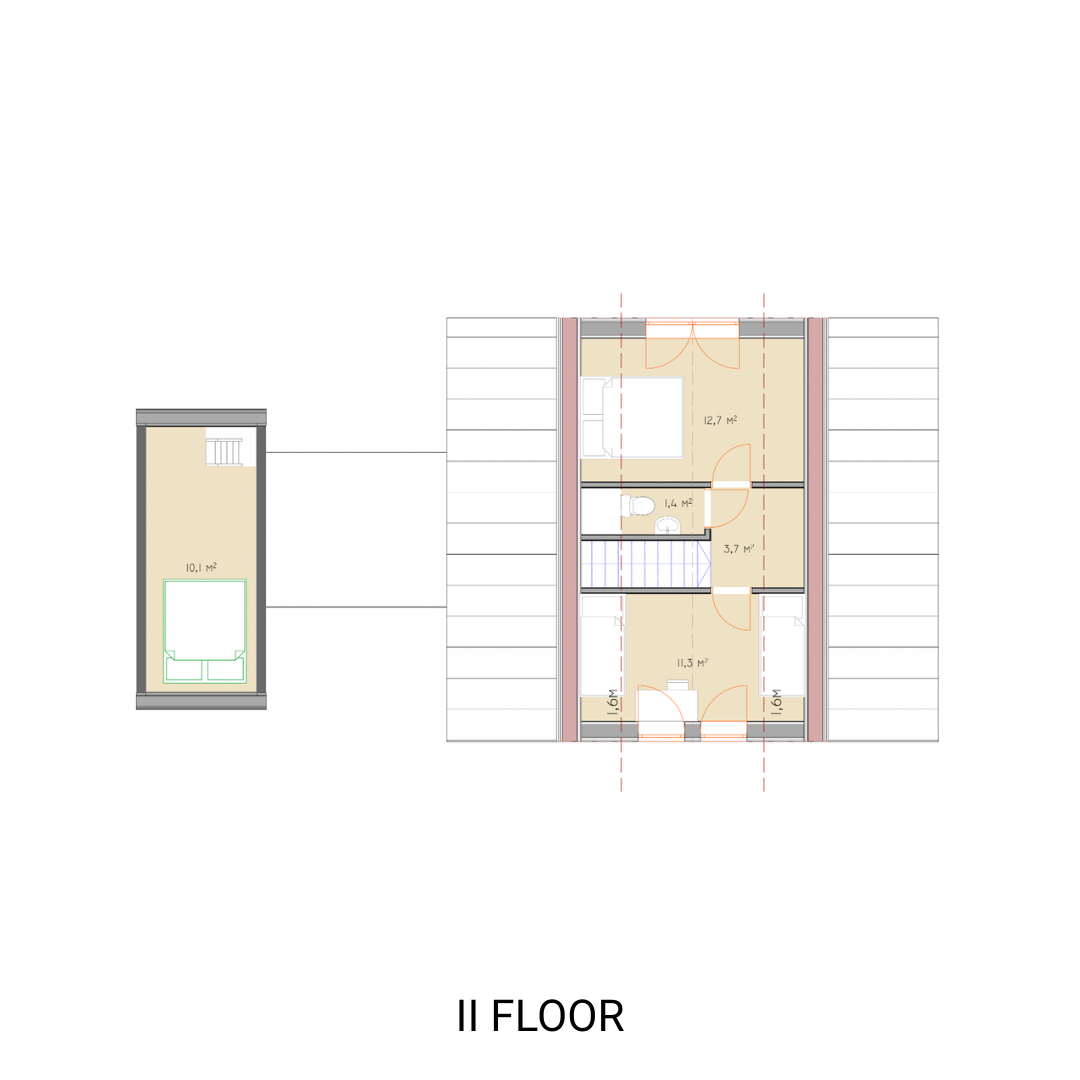

You can download the views and plans for the house from here.
Pricing
Two columns
Vertical
Horizontal
Double A-frame
Summary
{{ field.label }}
{{ field.converted }}
{{ field.extraView }}
{{ option.label }}
{{ option.converted }}
{{ item.label }}
{{ item.data.converted }}
"{{getWooProductName}}" has been added to your cart
Your service request has been completed!
We have sent your request information to your email.
Issued on:
{{ $store.getters.getIssuedOn }}
Payment method:
{{ $store.getters.getPaymentType }}
{{ item.label }}:
{{ item.converted }}
You can view and download the detailed price quote from here.
Kit descriptions (NB! EU kit is described. US version is different)
Structural kit
- Full set of non modified constructional drawings
- strength graded timber as structural truss (45x245mm)
- building accessories
- battens for roof structure (30x45mm)
- pressure treated sill plate
- breathable underlay for roofing TYVEK
- mesh against rodents
- strength graded timber for gable walls (45x245mm)
- floor structure for insulation (45x95mm)
- LVL ceiling beam (45x365mm)
- OSB3 (12mm, 22mm)
- vapour barrier
- dormer
- certificate of original Avrame
Interior kit
- PVC windows and terrace doors (tempered glass)
- wooden external door (half glass/full glass)
- roofing material Ruukki Classic C with fixings
- battens for roof structure (32x100mm)
- painted exterior cladding
- soffit and gable boards
Exterior kit
- Interior walls structure
- interior cladding
- MDF interior doors
- staircase+railings (trio) or ladder stairs (duo)
Production time
It takes up to 12 weeks to combine and manufacture the house kit.
We are capable of delivering worldwide.
