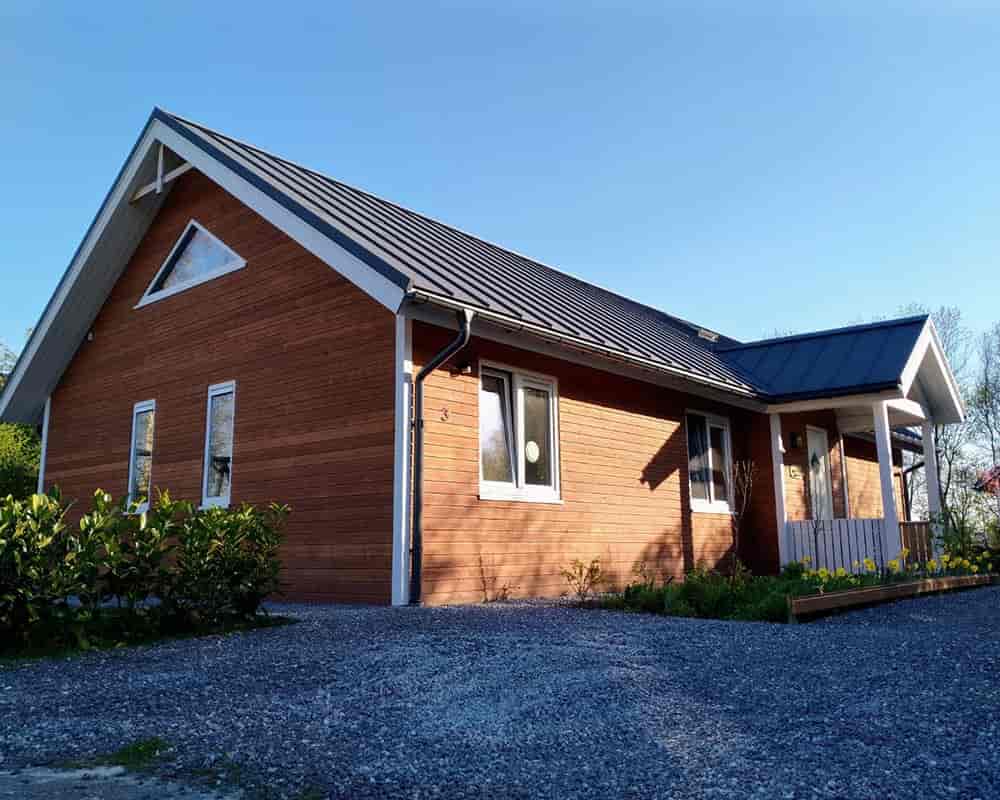

Classic G105
Outperforms most “regular family homes”.
Kitchen
12,9 sqm
Bedrooms
13,3 + 10,6 + 8,0 sqm
Dining area
10,7 sqm
Living area
18,4 sqm
Hallways
12,4 sqm
Terrace
23.2 sqm
Outside length
15,05m x 7,85m (49,4ft x 25,75ft)
Smart Engineering
We have used the 2×4′ (45x95mm) materials, which is the most common and affordable structural lumber. It makes a most energy efficient wall from it by spacing it in checkerboard mode. With no cold bridges and 8+2 inches (250mm) of insulation, You and your family are kept warm.
GET THE DRAWINGS

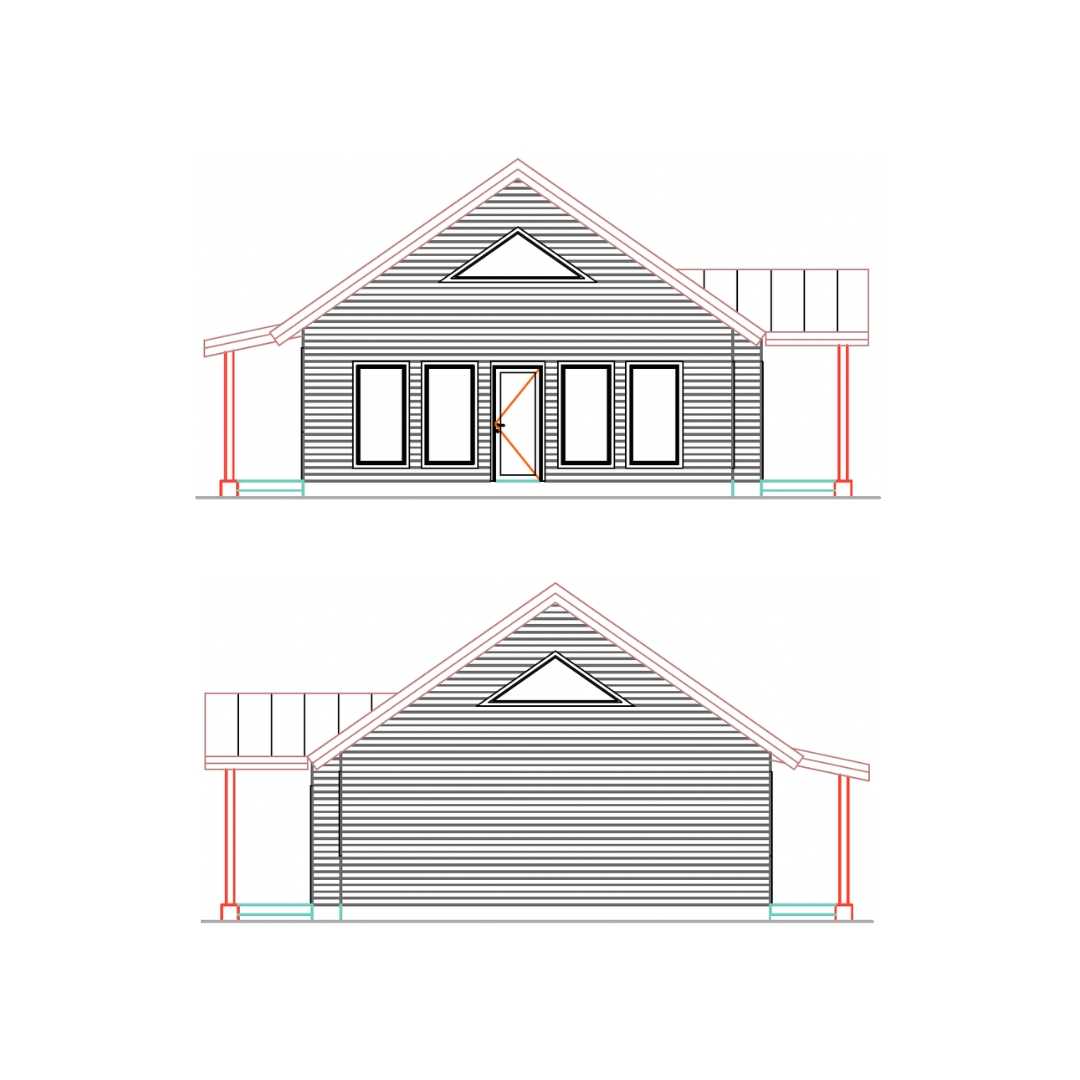

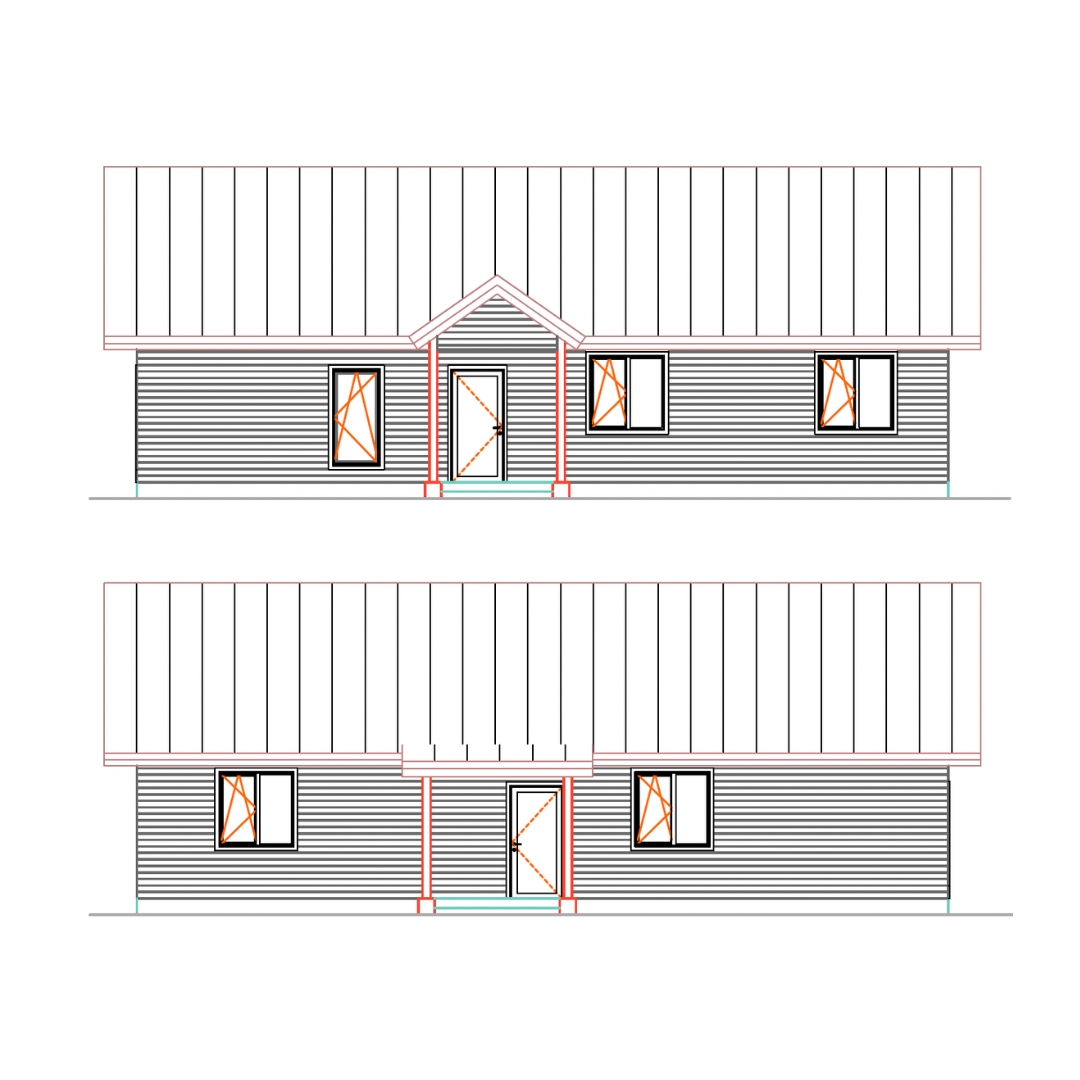

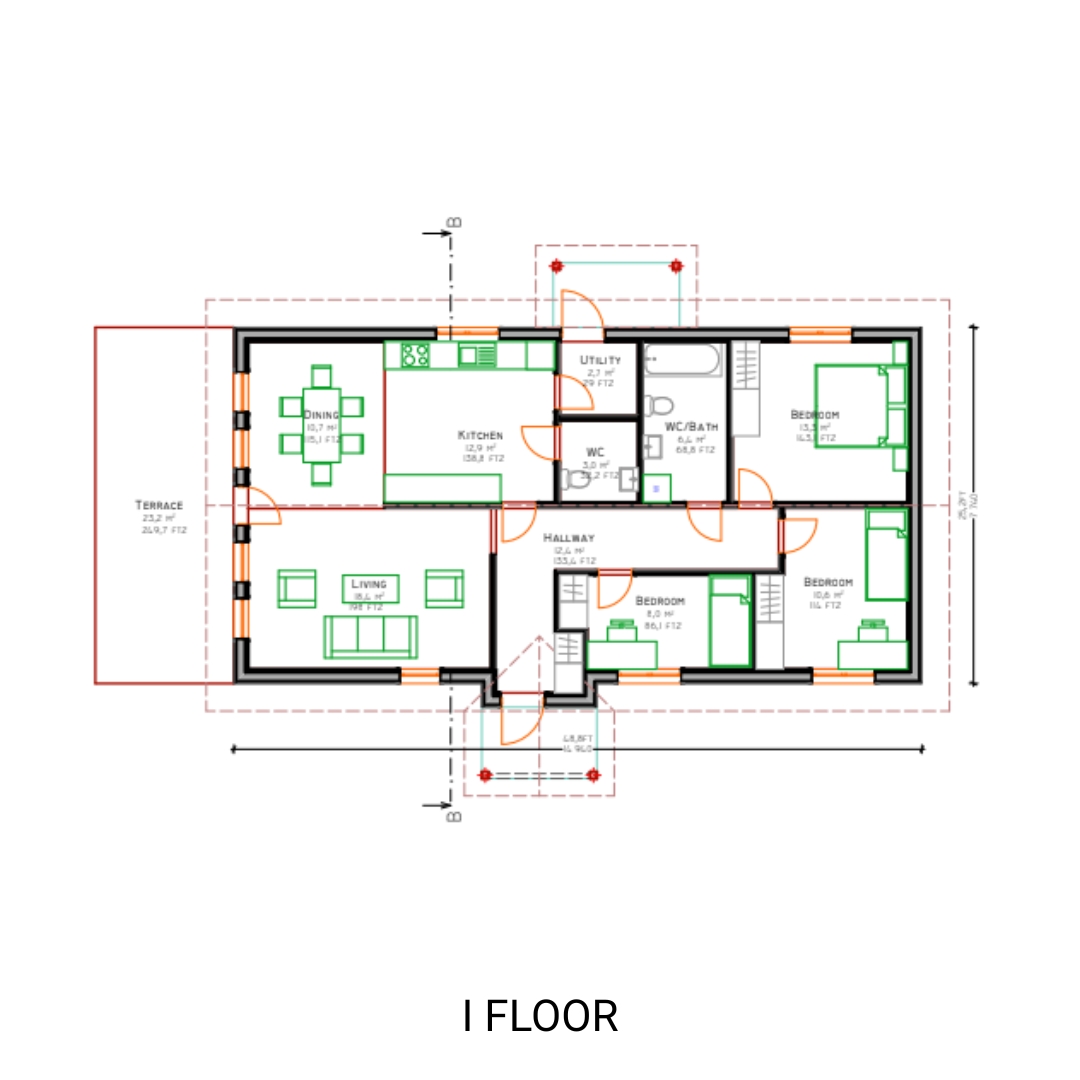

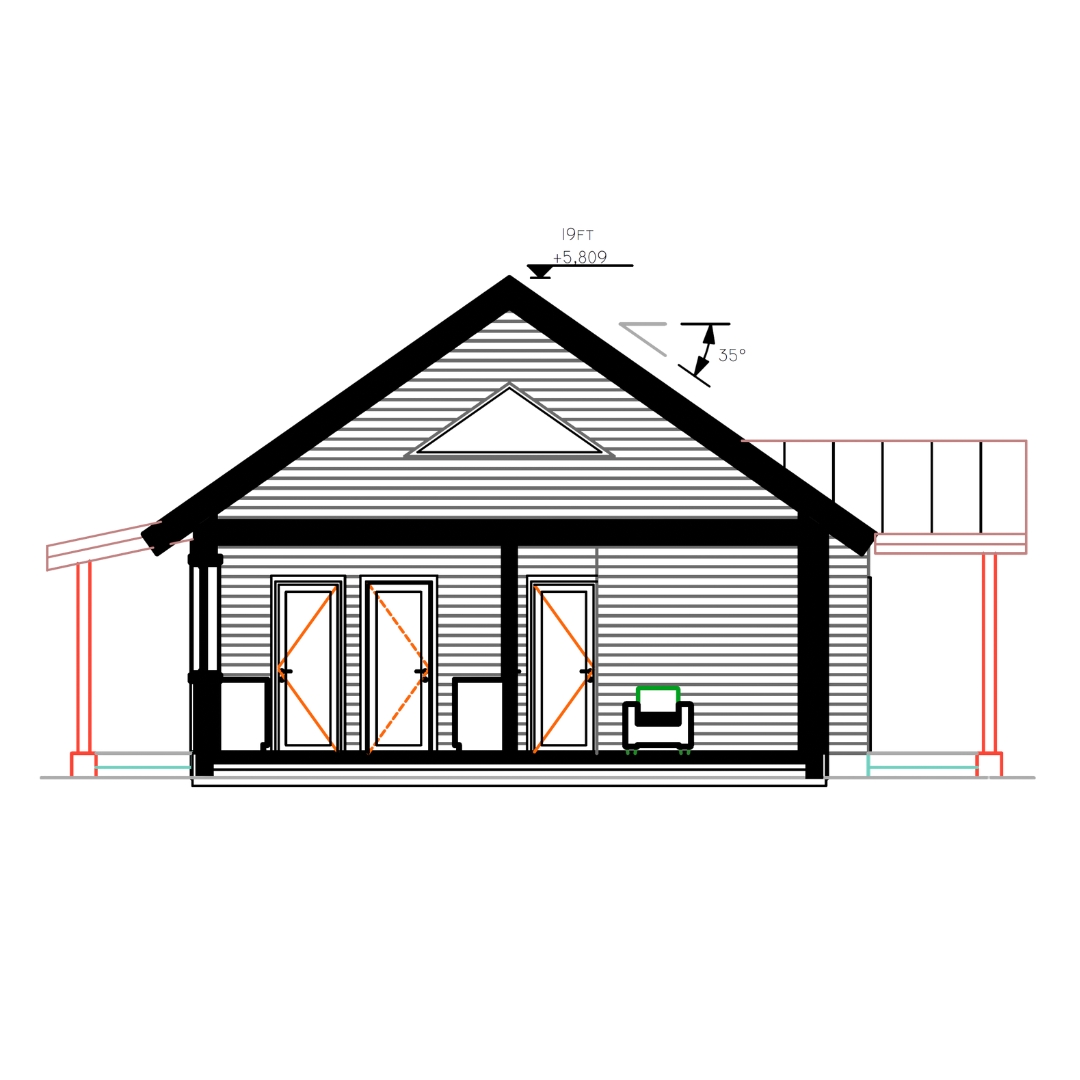

Download your copy of the floor plans and side views of the house, so you can start today with the planning of your project!
Structural kit includes
- C24 Certified pre-cut structural timber
- OSB3 12MM
- Building accessories
- TYVEK Solid
- Full constructional drawings
Exterior kit includes
- PVC windows with 3-layer and tempered glass
- Wooden exterior door
- Battens for roof structure
- Painted exterior cladding
- Soffit and gable boards
- Roofing material Ruukki Classic C 50 plus (includes rainwater guttering, snow guard, roof ladder)
Interior kit includes
- MDF interior doors with profile
- Finished interior cladding
Options
- Terrace structure
- Terrace boards
Excluding
- Foundation slab
- Insulation materials
- Utilities (wiring, water, sewage, HVAC)
- Interior finishes
- Local taxes
- Shipping costs
- Assembly costs
Prices start from:
23200€
