Classic G49

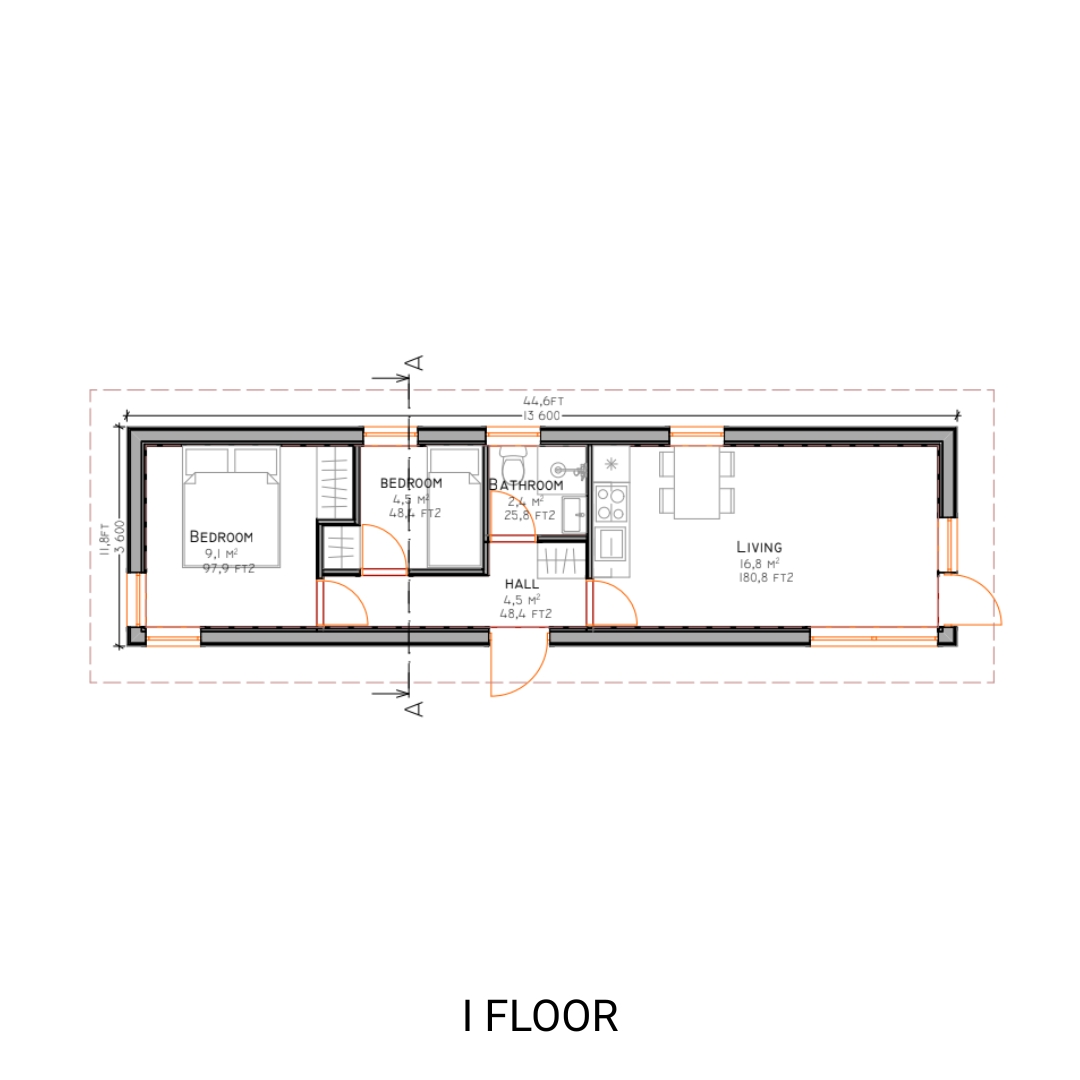

Kitchen + Living Area
16,8 sqm (180,8 sqft)
Bedrooms
9,1 + 4,5 sqm (97,9+48,4 sqft)
Hallways
4,5 sqm (48,4 sqft)
Bathroom
2,4 sqm (25,8 sqft)
Outside length
13,6m x 3,6m (44,6ft x 11,8ft)
Smart Engineering
We have used the 2×4′ (45x95mm) materials, which is the most common and affordable structural lumber. It makes a most energy efficient wall from it by spacing it in checkerboard mode. With no cold bridges and 8+2 inches (250mm) of insulation, You and your family are kept warm.
Structural kit includes
- C24 Certified pre-cut structural timber
- OSB3 12MM
- Building accessories
- TYVEK Solid (Building wrap)
- Vapour barrier
- Full constructional drawings
Exterior kit includes
- PVC windows with 3-layer and tempered glass
- Wooden exterior door
- Battens for roof structure
- Painted exterior cladding
- Soffit and gable boards
- Roofing material Ruukki Classic C 50 plus (includes rainwater guttering, snow guard, roof ladder)
Interior kit includes
- MDF interior doors with profile
- Finished interior cladding
Excluding
- Foundation slab
- Insulation materials
- Utilities (wiring, water, sewage, HVAC)
- Interior finishes
- Local taxes
- Shipping costs
- Assembly costs
Smart Engineering
We have used the 2×4′ (45x95mm) materials, which is the most common and affordable structural lumber. It makes a most energy efficient wall from it by spacing it in staggered stud mode. With almost no cold bridges and 8+2 inches (250mm) of insulation, You and your family are kept warm.
Classic models are structurally more complicated than A-frames. In order to preserve the affordable pricing and simplicity of the engineering>manufacturing>
1. Choosing color of exterior siding and roofing
2. Choosing between outwards or inwards opening exterior door
3. Choosing the color of window frames
4. Choosing between openable and fixed windows.
5. Mirroring the floorplan
6. Adding the ground floor decks.
7. Adding skylights
Any other modifications like altering the interior walls or changing windows dimensions/placements can be quoted for development orders of 5+ units. This is to ensure we maintain the core value proposition of the Classic line.
This House Comes in a Kit
Like all Avrame houses, this house comes in a construction kit.
The content of the kit can be configured according to your wishes, allowing you to source materials locally to save money on transport.
Every house shipped by Avrame kit will contain the “Structural Kit“.
The “Interior Kit” and “Exterior Kit” can be added to your order and shipped to your construction site in one single delivery.
We do ship worldwide.
